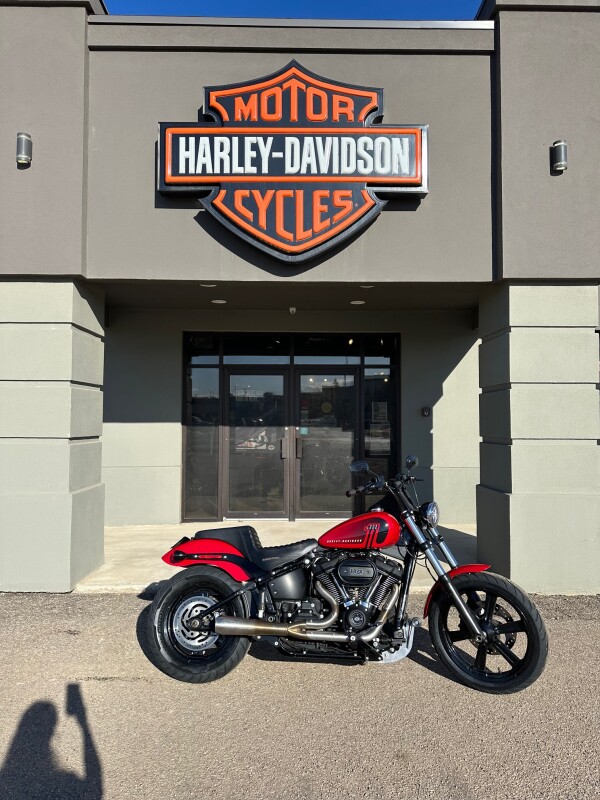

‹ Home › Inventory › 2023 Harley-Davidson® Street Bob™ 114 Redline Red

The lightest-weight Softail equipped with a Milwaukee-Eight® 114 engine for a quick and nimble ride with power to spare. A perfect performance base for customization with 2-up seating, black steel laced wheels and dark finishes deliver no nonsense, Raw Bobber attitude.

Specifications

Dimensions

add remove
- Length:

  2320 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  125 mm
- Rake (steering head):

  30
- Trail:

  157 mm
- Wheelbase:

  1630 mm
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  13.2 l
- Oil capacity:

  4.2 l
- Weight, as shipped:

  286 kg
- Weight, in running order:

  297.10 kg
- Tire, type:

  Dunlop™ Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  102 mm
- Stroke:

  114.3 mm
- Displacement:

  1868 cm³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  161 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  94 HP / 70 kW @ 5020 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  5 l/100 km
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, optional style type:

  Gloss Black, Steel Laced
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
